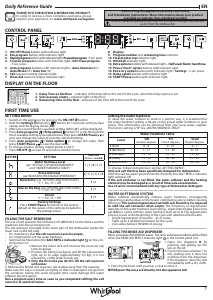

ENDaily Reference Guide

1

CONTROL PANEL

1. ON-OFF/Reset button with indicator light

2. Eco program button with indicator light

3. Rapid program button with indicator light/ Prewash program - 3 sec. press

4. Crystals program button with indicator light/ Self-Clean program

- 3 sec. press

5. Auto programs buttons with indicator lights - Auto Intensive 65°/

Auto Mixed 55°/ Auto Fast 50°

6. Salt reservoir empty indicator light

7. Rinse Aid reservoir empty indicator light

8. Display

9. Program number and remaining time indicator

10. Closed water tap indicator light

11. DESCALE indicator light

12. Extra options buttons with indicator lights - Half Load/ Silent/ Sani Rinse

13. Power Clean® option button with indicator light

14. Extra Dry option button with indicator light / Settings - 3 sec. press

15. Delay option button with indicator light

16. START/Pause button with indicator light

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.

In order to receive a more complete assistance, please

register your appliance on: www.whirlpool.eu/register

Before using the appliance carefully read Safety

and Installation Instructions. More information about your product

available on website: docs.whirlpool.eu/docs

After installation, please remember to remove all transport protection

parts from the dishwasher.

SETTING MENU

1. Switch on the appliance by pressing the ON-OFF button.

2. Hold the Settings (Extra Dry ) button for 3 seconds, until you hear

a beep and the display shows „SEt”.

3. After one second the rst available setting (letter „h”) will be displayed.

4. Press Auto programs / Extra options buttons to scroll through the

list of available settings (see table below), then press START/Pause to

view and change the value of currently selected setting.

5. Press Auto programs / Extra options to change the value, then

press START/Pause to save the new value.

6. To change another setting, repeat points 2 and 5.

7. Press ON-OFF or wait 30 seconds to exit the menu.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and the

machine’s functional components.

The salt reservoir is located in the lower part of the dishwasher (under the

lower rack on the left side).

• It is mandatory that the salt reservoir never be empty.

• It is important to set the water hardness.

• Salt must be lled when the SALT REFILL indicator light on the con-

trol panel is lit.

1. Remove the lower rack and unscrew the reservoir cap

(anticlockwise).

2. Position the funnel (see gure) and ll the salt reservoir

right up to its edge (approximately 0,5 kg); it is not

unusual for a little water to leak out.

3. Only the rst time you do this: ll the salt reservoir

with water.

4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly so that no detergent can get into

the container during the wash program (this could damage the water

softener beyond repair).

Run a program every time as soon as you completed relling the salt

reservoir to avoid corrosion.

LETTER SETTING

VALUES

(Default - in bold)

Water Hardness Level

(see “SETTING THE WATER HARDNESS”

and “WATER HARDNESS TABLE”)

1 | 2 | 3 | 4 | 5

Rinse Aid Level

(see “ADJUSTING THE DOSAGE OF RINSE AID”)

0 | 1 | 2 | 3 | 4 | 5

NaturalDry (see “OPTIONS AND FUNCTIONS”)

“1” = On, “0” = O

1 | 0

Time on the oor (see “OPTIONS AND FUNCTIONS”)

“1” = On, “0” = O

1 | 0

Sound

“1” = On, “0” = O

1 | 0

Factory Settings

Press START/Pause to restore to the factory

default all the values of the settings included in

the settings menu.

-

Setting the water hardness

To allow the water softener to work in a perfect way, it is essential that

the water hardness setting is based on the actual water hardness in your

house. This information can be obtained from your local water supplier.

The factory setting is “3”. See „WATER HARDNESS TABLE”.

To change, follow instructions in section „SETTING MENU”.

Only use salt that has been specically designed for dishwashers.

After the salt has been poured into the machine, the SALT REFILL indicator

light switches o.

If the salt container is not lled, the water softener and the heating

element may be damaged as a result of limescale accumulation.

Use of salt is recommended with any type of dishwasher detergent.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently

preventing scale buildup on the heater, contributing also to better cleaning

eciency. This system regenerates itself with salt, therefore it is required

to rell the salt container when empty. The frequency of regeneration

depends on the water hardness level setting - regeneration takes place once

per 4-6 Eco cycles with the water hardness level set to 3. The regeneration

process occurs at the beginning of the cycle with additional fresh water.

• Single regeneration consumes: ~3L of water;

• Takes up to 5 additional minutes for the cycle;

• Consumes below 0.005kWh of energy.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be lled

when the RINSE AID REFILL indicator light in the control panel is lit.

1. Open the dispenser B by

pressing and pulling up the

tab on the lid.

2. Pour in the rinse aid (max. 110

ml), making sure it does not

overow from the dispenser.

If this happens, clean the spill

immediately with a dry cloth.

3. Press the lid down until you hear a click to close it.

NEVER pour the rinse aid directly into the appliance tub.

A

B

FIRST TIME USE

1 2 3 4 5 6 7 10 11 128 9 13 14 15 16

panel - W11602471

Water Hardness Table

Level

°dH

German degrees

°fH

French degrees

°Clark

English degrees

1 (Soft)

0 - 6 0 - 10 0 - 7

2 (Medium) 7 - 11 11 - 20 8 - 14

3 (Average) 12 - 16 21 - 29 15 - 20

4 (Hard) 17 - 34 30 - 60 21 - 42

5 (Very hard) 35 - 50 61 - 90 43 - 62

DISPLAY ON THE FLOOR

1

3

2

1. Delay Time on the oor - indicator of the time left to the start of the cycle, when the Delay option is set

2. Salt reservoir empty - indicator light on the oor

3. Remaining Time on the oor - indicator of the time left to the end of the cycle
