Käyttöohje Cotech EMT707CTL Energiamittari

Käyttöohje

GREAT BRITAIN • CUSTOMER SERVICE tel. 020 8247 9300 e-mail [email protected] internet www.clasohlson.co.uk

360

MENY SET → +

RST

←

W

COST

I.68

TARIF

0.50

kWh

I234.56

W

3680

3680

VA

230.00

V

I6.00

A

50.00

Hz

0.99

PF

8888.8.8

V Hz

A VA

W PF

kWh

COST TARIFF

Ver. 20151124

Plug-In Electricity Meter

Art.no 18-2027 Model EMT707CTL-UK

36-2897 EMT707CTL

Please read theentire instruction manual before

use and save it for future reference. We reserve

theright for any errors in text or images and for

making any necessary technical changes to this

document. If you should have any questions

concerning technical problems please contact

our Customer Services.

Safety

• The product is intended only for use indoors.

• Devices connected to theelectricity meter

should be of thesame power rating and

specifications.

Product Description

The electricity meter measures how much ener-

gy anelectric device uses. Theelectricity meter

can calculate thetotal cost of running adevice

if theprice of each KWh is entered. Thedisplay

shows, amongst other things, thevoltage, po-

wer, energy consumption, kWh, and theresistive

load (VA) of theconnected device. This product

should be connected to anearthed socket.

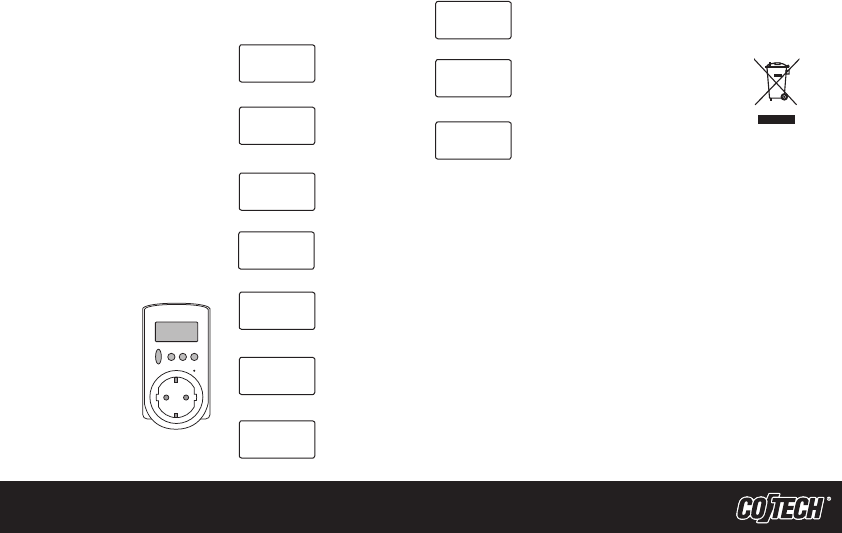

Buttons

• [ MENU ] Press to view

cost, tariff, kWh, VA,

Volts, Amps, Hz and

power factor.

• [ SET ] Use to set

thetariff and kWh.

• [

←

→

] Use to change

settings.

• [ + ] Use to change

settings.

• [ RST ] Hold in this

button to reset theunit

to its factory settings.

Cost, tariff and kWh

are not reset.

Guide to the functions

Press the[ MENU ] button to view thefunctions

in thefollowing order:

1. COST

Shows thepresent

load.

Shows thetotal cost

(up to 9999.99).

2. TARIFF

Shows

theprogrammed tariff.

3. kWh

Shows thetotal

consumption in kWh.

4. W

Shows thepresent

consumption in Watts.

NB: Theminimum unit

of power that can be

measured is 5 W.

5. VA

Shows theactive +

reactive power.

6. V

Shows thevoltage of

thepower supply.

7. A

8. Hz

Shows thefrequency of

thepower supply.

9. PF

Shows thepower factor.

10. RESET

When theunit is reset,

all thesymbols will be

displayed for abrief

moment.

Setting the electricity meter

1. Connect theelectricity meter to anearthed

wall socket. Theelectricity meter will start

and for amoment all thesymbols will appear

on thedisplay.

2. After about 3 seconds theelectricity

meter will enter thecost mode (fig.1)

and thedisplay will show thelatest cost

calculation.

3. Press [ SET ] once. “TARIFF” will appear on

thedisplay and theright-hand digit will flash.

4. Press [

←

→

] to choose which digit you wish

to set.

5. Press [ + ] to set thevalue of thedigit that

flashes. Press [

←

→

] once again to choose

thenext digit you wish to set.

6. Press [ SET ] to show and set thevalue

themeasurement of kWh is to start at.

Thedefault setting is 0, but this can be

changed if you wish to set theelectricity

meter to thesame setting as anexisting

electricity meter.

7. Set thekWh as instructed above.

8. When you have set theelectricity meter, plug

in thedevice you wish to measure. Metering

begins at once.

Care and Maintenance

Always remove theelectricity meter from thewall

socket before cleaning it. Wipe with asoft, lightly

moistened cloth.

Responsible disposal

This symbol indicates that this

product should not be disposed

of with general household waste.

This applies throughout the entire

EU. In order to prevent any harm

to the environment or health

hazards caused by incorrect

waste disposal, the product must

be handed in for recycling so that

the material can be disposed of in a responsible

manner. When recycling your product, take it to

your local collection facility or contact the place

of purchase. They will ensure that the product is

disposed of in an environmentally sound manner.

Specifications

Rated voltage 220–240 V AC, 50/60 Hz

Power 3680 W

Minimum power unit 5 W

Measuring Ranges 230 V ± 10 %

5–3680 W

5–3680 VA

0.02–16 A

Operating Temperature −20 to 40 °C

Accuracy

V ≤ ± 5.0 %

A ≤ ± 5.0 %

Hz ≤ ± 0.2 %

W ≤ ± 5.0 %

VA ≤ ± 5.0 %

kWh ≤ ± 1.0 %
