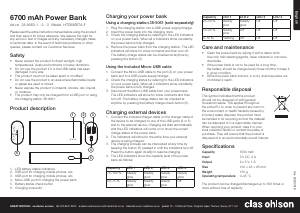

Käyttöohje Clas Ohlson HTD58667A-F Kannettava laturi

Käyttöohje

English

GREAT BRITAIN • customer service

tel: 020 8247 9300 e-mail [email protected] internet www.clasohlson.co.uk postal 10 – 13 Market Place, Kingston Upon Thames, Surrey, KT1 1JZ

5V/1A

5V/1A

IN

Made in China

Model:38-9060-3/HTD58667A-F

Input: 5V/2A Output:2X 5V/1A

Capacity:6700mAh/24.12Wh

1 2 3

4

5

6

Ver. 20200319

6700 mAh Power Bank

Art.no 38-9060-1, -2, -3 Model HTD58667A-F

Please read theentire instruction manual before using theproduct

and then save it for future reference. Wereserve theright for

any errors in text or images and any necessary changes made

to technicaldata. Intheevent of technical problems or other

queries, please contact our Customer Services.

Safety

• Never subject theproduct to direct sunlight, high

temperatures, dusty environments or heavy vibrations.

• Do not use theproduct if it or theUSB cable has been

damaged in anyway.

• Theproduct must not be taken apart or modified.

• Do not use theproduct in anarea where flammable liquids

or gases are used or stored.

• Never expose theproduct to impacts, shocks, rain, liquids

or moisture.

• Theproduct may only be charged from aUSB port or using

thecharging station 38-9061.

Product description

Charging your powerbank

Using acharging station 38-9061 (sold separately)

1. Plug thecharging station into aUSB power supply/charger.

2. Insert thepower bank into thechargingdock.

3. Check thecharging status by referring to theLED indicators

on your powerbank. Whenall 4 indicators shine constantly,

thepower bank is fully charged.

4. Remove thepower bank from thecharging station. TheLED

indicators will shine for afew moments and then turnoff.

Thebattery charge status can be checked at anytime by

pressing thebutton (5).

Using theincluded Micro-USBcable

1. Connect theMicro-USB cable to theport (4) on your power

bank and to aUSB power supply/charger.

2. Check thecharging status by referring to theLED indicators

on your powerbank. Whenall 4 indicators shine constantly,

thepower bank is fully charged.

3. Disconnect theMicro-USB cable from your powerbank.

TheLED indicators will shine for afew moments and then

turnoff. Thebattery charge status can be checked at

anytime by pressing thebattery charge check button (5).

Charging external devices

1. Connect theincluded charger cable (or thecharger cable of

thedevice to be charged) to one of theUSB ports (2 or 3)

and to theexternal device. Charging will start automatically

and theLED indicators will come on to show thecurrent

charge status of thepowerbank.

2. Theindicators will shine for theentire time your external

device is being charged.

3. Thecharging process can be interrupted at any time by

keeping thebutton (5) pressed in until theindicators turnoff.

Pressthebutton again (briefly) to resume charging.

4. TheLED indicators show thecapacity level of thepower

bank as follows:

Capacity LED 1 LED 2 LED 3 LED 4

75–100% Steady

glow

Steady

glow

Steady

glow

Steady

glow

50–75% Steady

glow

Steady

glow

Steady

glow

Off

Capacity LED 1 LED 2 LED 3 LED 4

25–50% Steady

glow

Steady

glow

Off Off

10–25% Steady

glow

Off Off Off

0–10% Flashing Off Off Off

Care and maintenance

• Clean thepower bank by wiping it with adampcloth.

Useonly mild cleaning agents, never solvents or corrosive

chemicals.

• If thepower bank is not to be used for along time,

thebattery should be charged every three months to keep it

in good condition.

• Store thepower bank indoors, in adry, dust-free place out

of children’sreach.

Responsible disposal

1. LED battery status indicators

2. USB port for charging mobile phones,etc.

3. USB port for charging mobile phones,etc.

4. Micro-USB port for charging thepowerbank

5. Battery status check button

6. Charging connector

This symbol indicates that this product

should not be disposed of with general

householdwaste. Thisapplies throughout

theentire EU. Inorder to prevent any harm to

theenvironment or health hazards caused by

incorrect waste disposal, theproduct must

be handed in for recycling so that thematerial

can be disposed of in aresponsible manner.

Whenrecycling your product, take it to your

local collection facility or contact theplace of

purchase. Theywill ensure that theproduct is

disposed of in anenvironmentally sound manner.

Specifications

Capacity 6700mAh

Input 5 V DC, 2 A

Output 2 x 5 V, 1 A

Size 100×43×23mm

Weight 150g

Operating temperature 0–45 °C

Theproduct can be charged/discharged up to 300 times or

more without loss of capacity.
