Käyttöohje FERM TDM1002 Pöytäporakone

Käyttöohje

Fig.N

Fig.O

Fig.P

Fig.Q

Fig.R

Fig.S

Fig.T

Fig.U

Fig.V

Fig.W

Fig.X

Fig.Y

Fig.Z

Fig.AA

Fig.BB

1

3

2

Not included

3

2

4

1

Not included

4

5

2

3

3

1

2

2

1

4

3

3

2

1

2

1

3

1

2

5

4

3

2

1

Spindle Motor

1 - 469 2 - 946

3 - 1576 4 - 2259

5 - 3028

1

3

2

1

2

3

4

5

1

2

5

2

4

1

3

1

2

Ferm 3

RADIAL TABLE DRILL

THE NUMBERS IN THE TEXT BELOW

CORRESPOND TO THE ILLUSTRATIONS ON

PAGE 2 + 3.

Caution! For your own safety,carefully read these

instructions for use before using the machine.

CONTENTS:

1. Technical data

2. Safety instructions

3. Definitions

4. Directions for assembly

5. Directions for set up

6. Working with the radial table drill

7. Maintenance

1.TECHNICAL DATA

Product information

Fig.A

1 Motor

2 Mill-cut groove

3 Horizontal toothed rack

4 Rotation locking clamp

5Table support lock

6Table support

7 Conical locking screw

8 Conical scale

9Vertical locking button

10 Chuck

11 Spring cover

12 Return spring 0

13 On / off switch

14 Base

15 Stand

16 Table

17 Drilling grips

18 Depth scale locking knob

19 Depth scale indicator

20 Protractor

21 Horizontal drill button

22 V-groove

23 Belt tension locking button

24 Tilt locking clamp

25 Mill-cut groove

26 Drive belt guard

27 Spindle pulley block

28 Motor pulley block

General guidelines

• Inspect all parts after unpacking,for possible damage

during transport.In the event of transport damage,

the carrier should be immediately notified.

• Complaints made later will not be accepted.

• Inspect the delivery for completeness.

• Become familiar with the machine by reading the

operator’s guide thoroughly prior to first use.

• When fitting/replacing accessories,wear- and

reserve parts,use exclusively original Ferm parts.

Spare parts are available from your supplier.

• When ordering,please specify our article number

and the machine type.

Remark:According to the applicable product liability

law,the manufacturer of this appliance is not liable for

damage caused to or by this appliance,arising from:

• Negligent operation.

• Failure to follow the instructions in the operator’s

guide.

• Repairs carried out by third parties,and unqualified

workmen.

• The fitting of,or replacement with,other than

original Ferm spare parts.

• Usage other than that for which the machine is

designed,failure of the electrical installation,by not

observing the electrical regulations and the VDE

provisions 0100,DIN 57113 1 VDE 0113.

We strongly recommend:

Before assembling and using the machine,read

the complete text of the operator’s guide.

This operator's guide is designed to make it easier for

you to get to know your machine,and to learn how to

make use of it’s many functions.

The operator's guide includes important directions as

to how you can safely,expertly and economically employ

the machine,and how you can avert hazards,save on

repair costs,reduce unavailability,and increase the

reliability and useful life of the machine.

Besides following the safety guidelines in this operator's

guide,you should give your fullest attention to the

regulations applicable in your country for the use of this

machine.

Keep the operator's guide close to the machine,packed

inside a plastic sleeve to protect it from dirt and

moisture.It should be carefully read and strictly followed

by every operator of the machine.Only persons who

have received instruction in the operation of the

machine and who are aware of the potential hazards

should be allowed to operate the machine.The

minimum age should be heeded.

Besides the safety guidelines in this operator's guide and

the specific regulations applicable in your country,the

generally recognised technical rules for the use of

woodworking machines should also be heeded.

Unpack the contents of the box and inspect them

closely.

Should any part be missing or damaged,do not

connect the machine to the power supply until the

machine is complete and in order.

Unpack the machine and parts carefully,and compare

them to the drawing.

To protect the drill from moisture,the surfaces have

been coated with a protective layer which you can

remove using a soft cloth and WD-40.

To prevent danger of fire or poisonous fumes,never

use petrol,naphtha,acetone,thinners or similar

volatile solutions for cleaning the machine.

2.SAFETY INSTRUCTIONS

In this operator's guide the following pictograms are

used:

CE Conforms to the applicable European safety

standards

Danger of bodily injury or material damage.

Indicates electrical shock hazard.

Read the instructions

Keep bystanders at a distance

Immediately unplug the plug from the mains

electricity in the case that the cord gets damaged

and during maintenance

Wear eye and ear protectors

Faulty and/or discarded electrical or electronic

apparatus have to be collected at the appropriate

recycling locations.

General safety instructions

Safety is a combination of common sense,continual

alertness and a good knowledge of the machine’s

operations.

Only insert the plug in the wall socket,once you

have read and understood the following directions,

to avoid faults that could cause injury.

1. Read the entire operator's guide and become

familiar with its contents.Learn how you should use

the tools and what the limitations and potential

hazards are.

2. Be absolutely certain that all safety precautions are

operational,and that they are in a good state.

3. Remove adjustment tools and spanners.Get

accustomed to checking,before switching on the

machine,whether adjustment tools and spanners

have been removed.

4. Keep the work surface clean.Untidy and fouled work

surfaces cause accidents.

5. Never use the machine in an unsafe environment.

Never use electrical equipment in damp or wet

places,and protect them from rainwater.Ensure

good lighting of the work area.

6. Keep children at a distance.Persons,who are not

working with the machine,should maintain a safe

distance from the work area.

7. Use locks if necessary,to ensure that children cannot

enter the work area.

8. Never apply brute force on or about the machine.

The machine functions better and more safely at the

speed it was designed for.

9. Use appropriate tools.Do not try to use force to apply

the machine to operations it was not designed for.

10. Use a regulation extension cable certain that it is in a

good state.The extension cable must be strong

enough to carry the current drawn by the tool for

your workpiece.A cable that is too weak will

dissipate the current,which leads to power loss and

overheating.

11. Work with the right equipment.Do not wear loose

clothes,gloves,ties,rings,armbands or other

accessories that could come in contact with moving

parts.Wear anti-slip shoes.Protect long hair by using

a hairnet.

12. Wear safety glasses.Your eyes are your most valuable

possession.Always wear safety glasses.Every drill can

throw foreign objects into the eyes,which can cause

irreparable harm.Always wear safety glasses that

conform to the safety guidelines (not a normal pair

of glasses.) Normal optical glasses offer no

protection against objects flying around.They have

no safety glass in the lenses.If these lenses break,this

can cause serious injury.

13. Wear a face- or dust mask.Drills create dust.

14. Work safely.Make as much use as possible of a clamp

or vice.This is safer than using your hands,and leaves

both hands free to operate the machine.

15. Remove the plug from the power socket when

performing maintenance,and when changing

accessories such as cutter,drill,routing bit,etc.

16. Reduce the risk of unintended activation of power.

Verify that the power switch is OFF,before you

connect mains power.

17. Only use recommended accessories.These

accessories can be found in the operator's guide.

Poorly fitting accessories create a substantial risk of

personal injury.

18. Never stand on the machine.This can cause serious

injury,should the machine tilt,or if you accidentally

come into contact with the cutting tools.

19. Inspect the machine for damaged parts.Before you

make further use of the machine,any damaged safety

features as well as any other damaged part must be

carefully inspected,as to whether they still function

without problem and can still perform their specific

task.Inspect all moving parts for alignment,position,

and correct couplings;furthermore check for

breakages,correct assembly and any other

conditions that could have an influence on the

machine’s functioning.Any damaged safety features

or damaged part must be repaired or replaced in a

workmanlike way.

20. Never leave a running machine unattended.First

turn off the power.Only leave the machine once it

has completely stopped moving.

21. Do not excessively lean,either forwards or

sideways.Always ensure you have a stable footing,

and keep your balance.

22. Perform maintenance on the machine with care.For

correct and safe operation,the tools must be sharp

and clean.Follow carefully the directions for honing

and replacement of tools.

23. Never use electrical machines in the presence of

inflammable fluids or gases.

24. Do not work with the machine if you are under the

influence of drugs,alcohol or medicines that could

limit your capability to react.

Power| 230 V

Frequency | 50 Hz

Unloaded speed | 469-3028/min

Number of speeds | 5

Power drawn | 350 W

Max.drilling depth | 100 mm

Table rotation | 0˚ to 45˚ (L/R)

Table dimensions | 220 x 195 mm

Clearance | 115 x 435 mm

Dimensions base | 345 x 225 mm

Height | 725 mm

Spindle distance | 100 - 340 mm

Chuck opening | 13 mm

Lpa (sound pressure level) | 65.5 dB(A)

Lwa (sound power level) | 78.5 dB(A)

Vibration value | 0.853 m/s

2

4 Ferm

Ferm 53

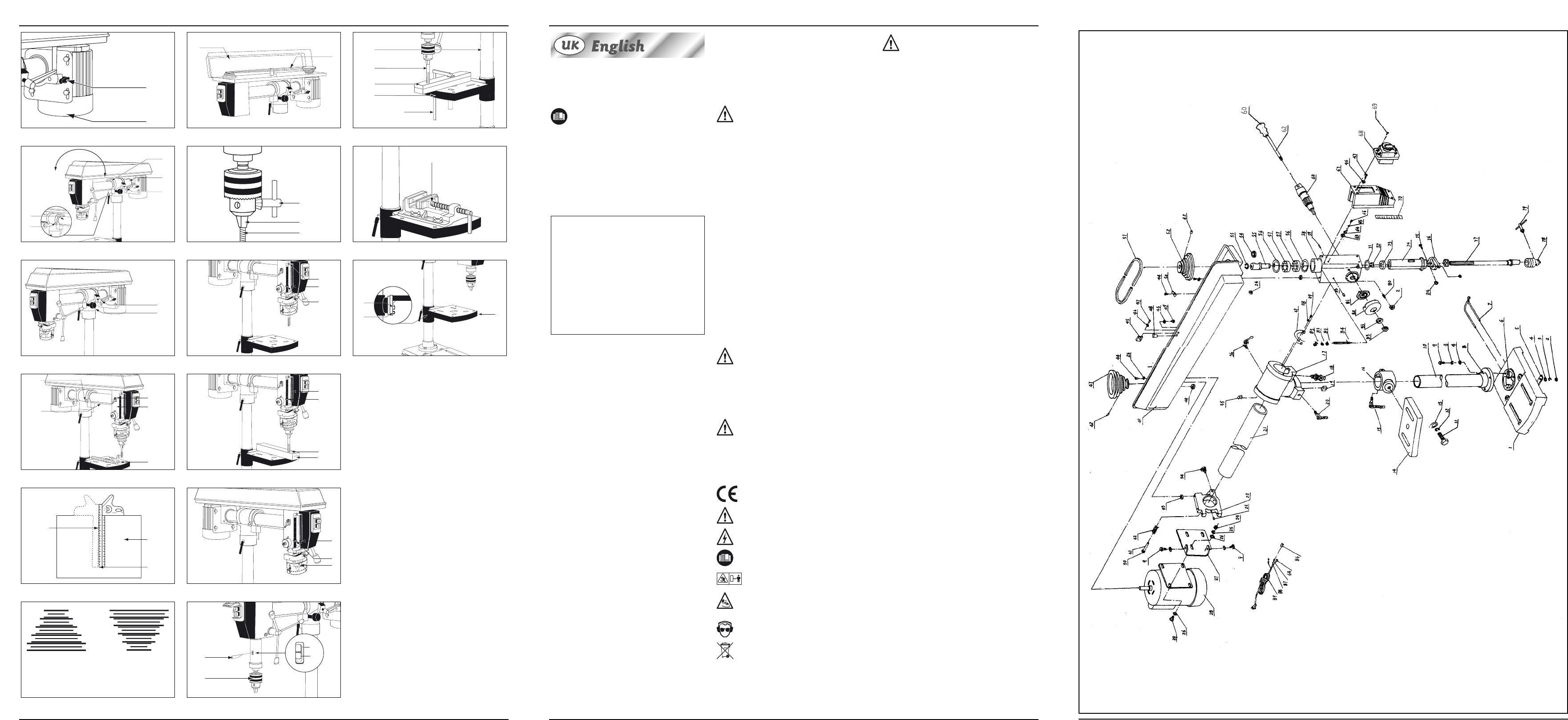

EXPLODED VIEW
