SAFETY INSTRUCTIONS
IMPORTANT READ CAREFULLY: It is important that all operators read and understand all sections
of this Tool Technical Data manual and the separate Safety and Operating Instruction Manual which come with
this tool. Failure to do so could result in you or others in the working area to be seriously injured.
WARNING! Eye protection in accordance with 89/686/EEC, and with equal or greater grade than defined in
EN166 should be used. However all aspects of operators work, environment and other type/s of machinery
being used, should also be considered when selecting any personal protection equipment. Note: Non-side
shielded spectacles and face shields alone do not provide adequate protection.
WARNING! To prevent accidental injuries:
•
Never place a hand or any other part of the body in fastener discharge area of tool.
•
Never point tool at yourself or anyone whether it contains fasteners or not.
•
Never engage in horseplay.
•
Never pull the trigger unless the nose is directed towards the work.
•
Always handle the tool with care.
•
Do not pull the trigger or depress the trip mechanism whilst loading the tool.
•
To prevent accidental actuation and possible injury, always disconnect air supply.
1. Before making adjustments. 2. When servicing the tool. 3. When clearing a jam. 4. When tool is not in use.
5. When moving to a different work area, as accidental actuation may occur, possibly causing injury.
•
Read the additional Safety & Operating instructions booklet before using tool.
•
Do not use oxygen and combustible gases as an energy source for pneumatically operated tools.
•
The operation of this tool can cause sparks and act as a source of ignition for flammable fuels and gases.
1. Turn tool sideways with discharge area pointed away from yourself and others. Depress
the quick release latch inside the tool frame or the latch on the rear of the main frame.
Slide rail to rear. (Fig 1)
2. Drop staple stick into magazine. (Fig 2)
3. Push rail forward until the latch closes. The tool is now ready for use. (Fig 3)
Note: Use only fasteners recommended by Stanley for use in Stanley Tools or which meet Stanley specifications.
TOOL AIR FITTING
This tool uses a free-flow connector plug, 1/4 N.P.T. The inside diameter should be 5mm or larger. The fitting
must be capable of discharging tool air pressure when disconnected from the air supply.
OPERATING PRESSURE
70 to 120 p.s.i. (4.9 to 8.4 BAR). Select the operating pressure within this range for best fastener performance.
Caution: Do not exceed the recommended operating pressure.
AIR CONSUMPTION
The 216 requires 1.65 cubic feet per minute (.046 cubic meters) and the 216-LN models require 1.8 cubic feet per
minute (.051 cubic meters) of free air to operate at the rate of 100 staples per minute, at 80 p.s.i. (5.6 kg/cm
2
).
Take the actual rate at which the tool will be run to determine the amount of air required. For instance, if your
fastener usage averages 50 staples per minute, you need 50% of the tool’s c.f.m. which is required to operate the
tool at 100 staples per minute.
Stanley offers two types of Operation for the 216 series tools:

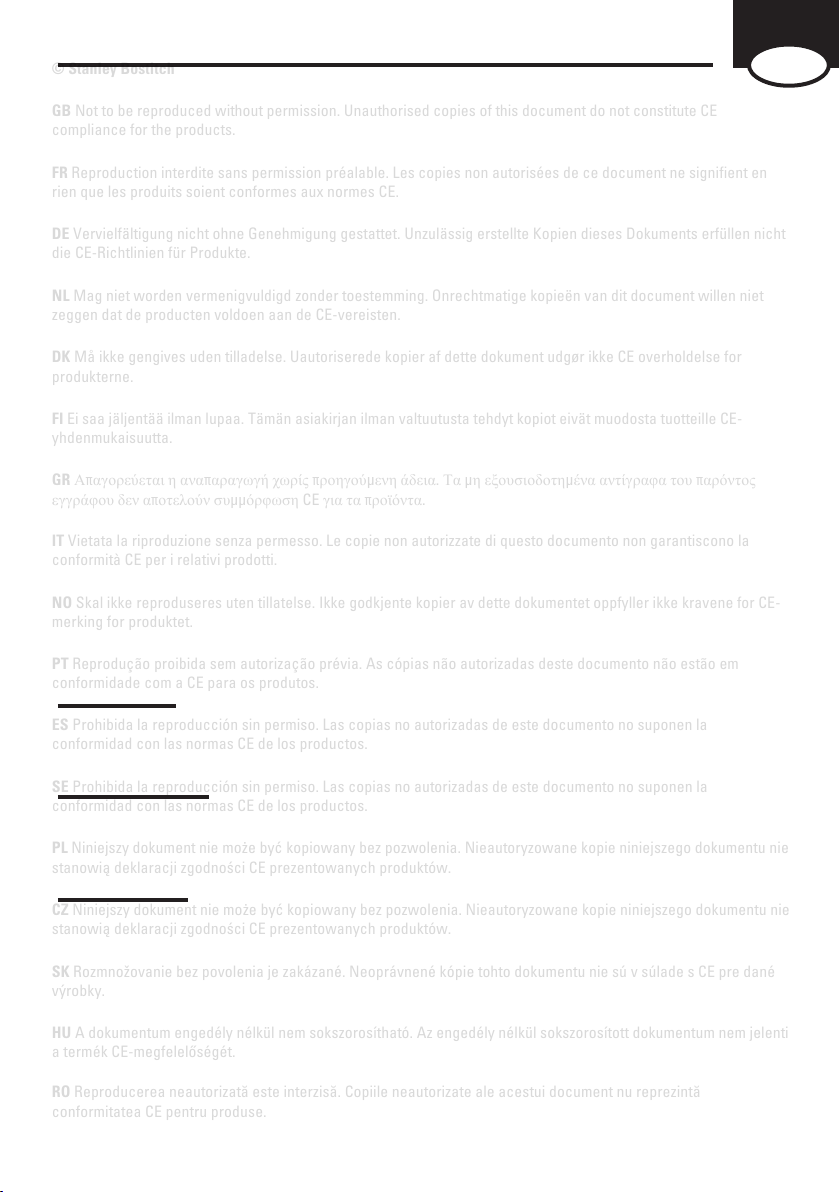

GB
© Stanley Bostitch
GB Not to be reproduced without permission. Unauthorised copies of this document do not constitute CE
compliance for the products.
FR Reproduction interdite sans permission préalable. Les copies non autorisées de ce document ne signifient en
rien que les produits soient conformes aux normes CE.
DE Vervielfältigung nicht ohne Genehmigung gestattet. Unzulässig erstellte Kopien dieses Dokuments erfüllen nicht
die CE-Richtlinien für Produkte.
NL Mag niet worden vermenigvuldigd zonder toestemming. Onrechtmatige kopieën van dit document willen niet
zeggen dat de producten voldoen aan de CE-vereisten.
DK Må ikke gengives uden tilladelse. Uautoriserede kopier af dette dokument udgør ikke CE overholdelse for
produkterne.
FI Ei saa jäljentää ilman lupaa. Tämän asiakirjan ilman valtuutusta tehdyt kopiot eivät muodosta tuotteille CE-
yhdenmukaisuutta.
GR Απαγορεύεται η αναπαραγωγή χωρίς προηγούμενη άδεια. Τα μη εξουσιοδοτημένα αντίγραφα του παρόντος
εγγράφου δεν αποτελούν συμμόρφωση CE για τα προϊόντα.
IT Vietata la riproduzione senza permesso. Le copie non autorizzate di questo documento non garantiscono la
conformità CE per i relativi prodotti.
NO Skal ikke reproduseres uten tillatelse. Ikke godkjente kopier av dette dokumentet oppfyller ikke kravene for CE-
merking for produktet.
PT Reprodução proibida sem autorização prévia. As cópias não autorizadas deste documento não estão em
conformidade com a CE para os produtos.
ES Prohibida la reproducción sin permiso. Las copias no autorizadas de este documento no suponen la
conformidad con las normas CE de los productos.
SE Prohibida la reproducción sin permiso. Las copias no autorizadas de este documento no suponen la
conformidad con las normas CE de los productos.
PL Niniejszy dokument nie może być kopiowany bez pozwolenia. Nieautoryzowane kopie niniejszego dokumentu nie
stanowią deklaracji zgodności CE prezentowanych produktów.
CZ Niniejszy dokument nie może być kopiowany bez pozwolenia. Nieautoryzowane kopie niniejszego dokumentu nie
stanowią deklaracji zgodności CE prezentowanych produktów.
SK Rozmnožovanie bez povolenia je zakázané. Neoprávnené kópie tohto dokumentu nie sú v súlade s CE pre dané
výrobky.
HU A dokumentum engedély nélkül nem sokszorosítható. Az engedély nélkül sokszorosított dokumentum nem jelenti
a termék CE-megfelelőségét.
RO Reproducerea neautorizată este interzisă. Copiile neautorizate ale acestui document nu reprezintă
conformitatea CE pentru produse.
